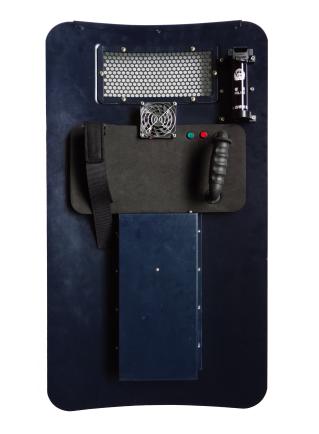

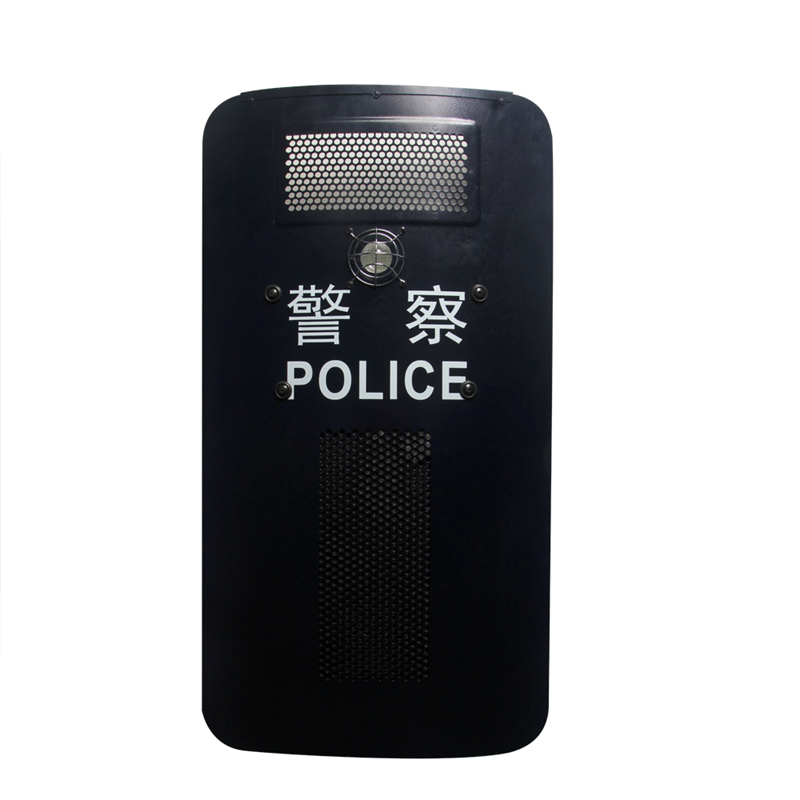

Acousto-Optic Anti-Riot Dispersion Shield

I. Product Overview

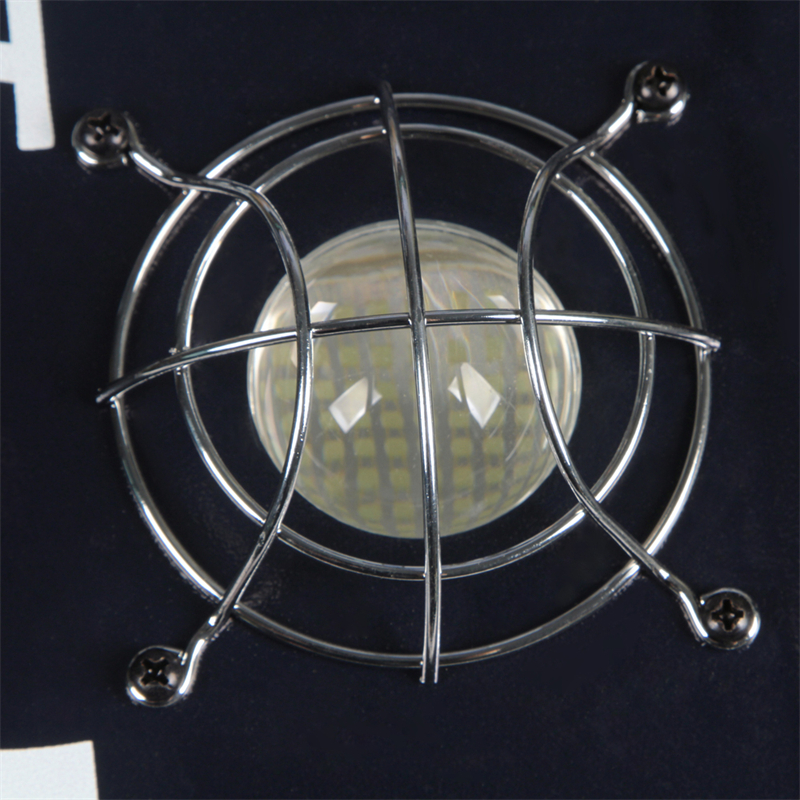

Acoustic Dazzle Tear Gas Dispersal Shield is suitable for various group incidents.Activating the shield’s green dazzling strong light prevents crowds from looking directly toward the shield.Activating the shield’s high-intensity acoustic function emits noise up to 130 dB, making it nearly impossible to approach within 2 meters (6.56 ft).By spraying tear gas, the shield can quickly disperse crowds.

The dispersal shield generally adopts combined matrix operation. When multiple shields are used together, their power is greatly enhanced, enabling rapid apprehension or dispersal of target crowds.

Instructions for Use

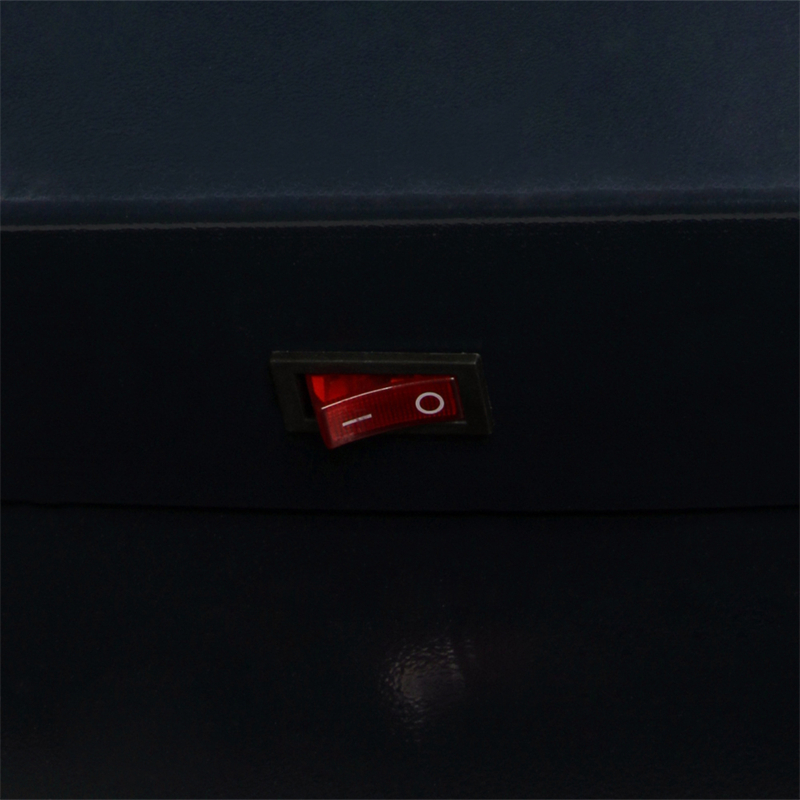

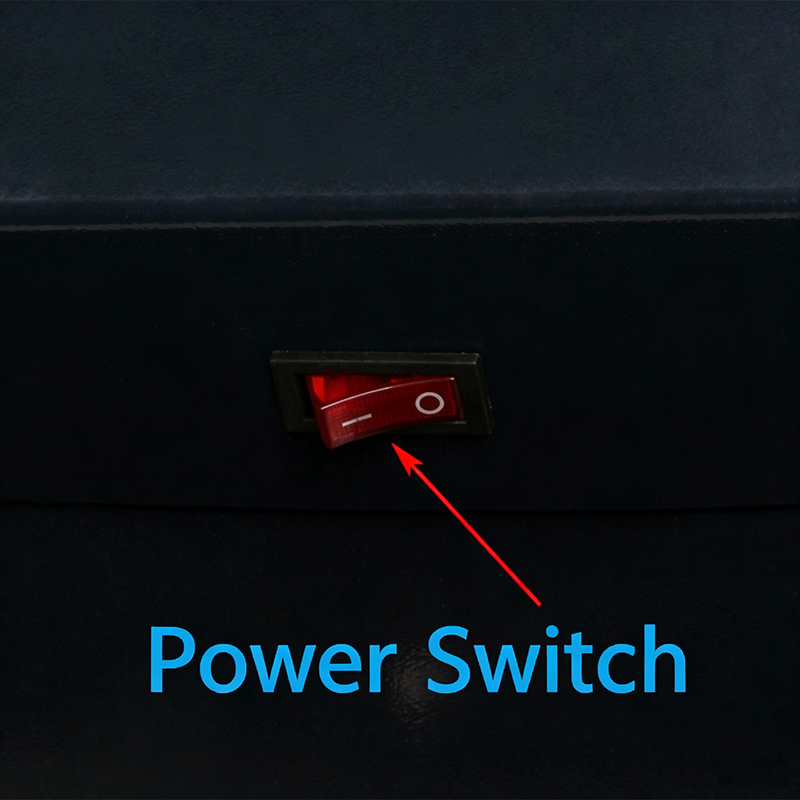

First, turn on the power switch, which is a red square button.

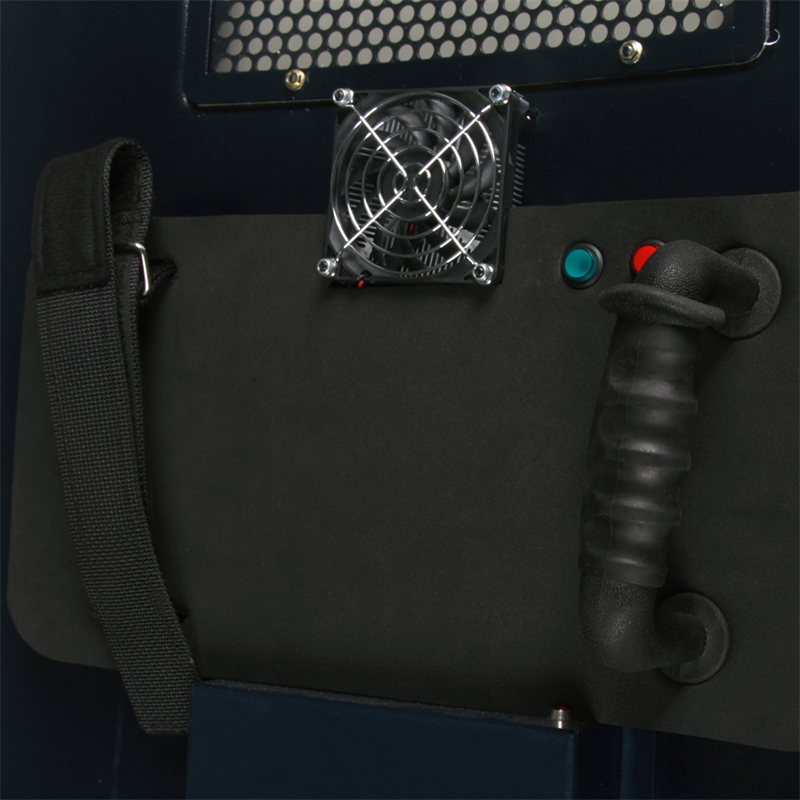

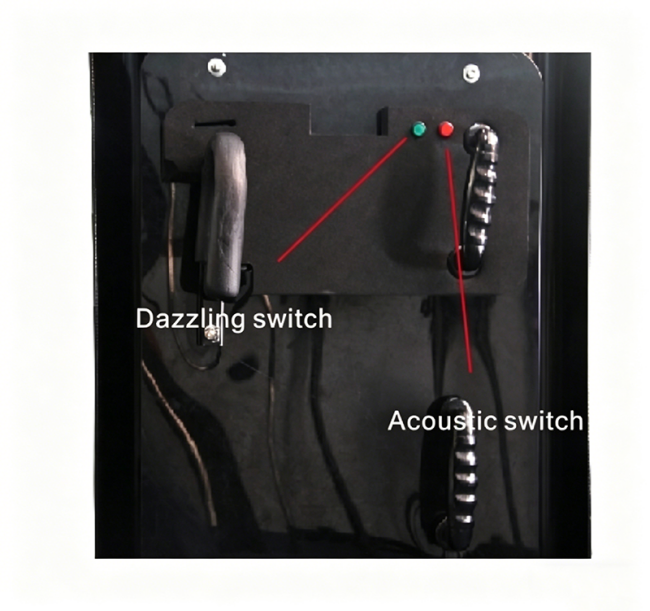

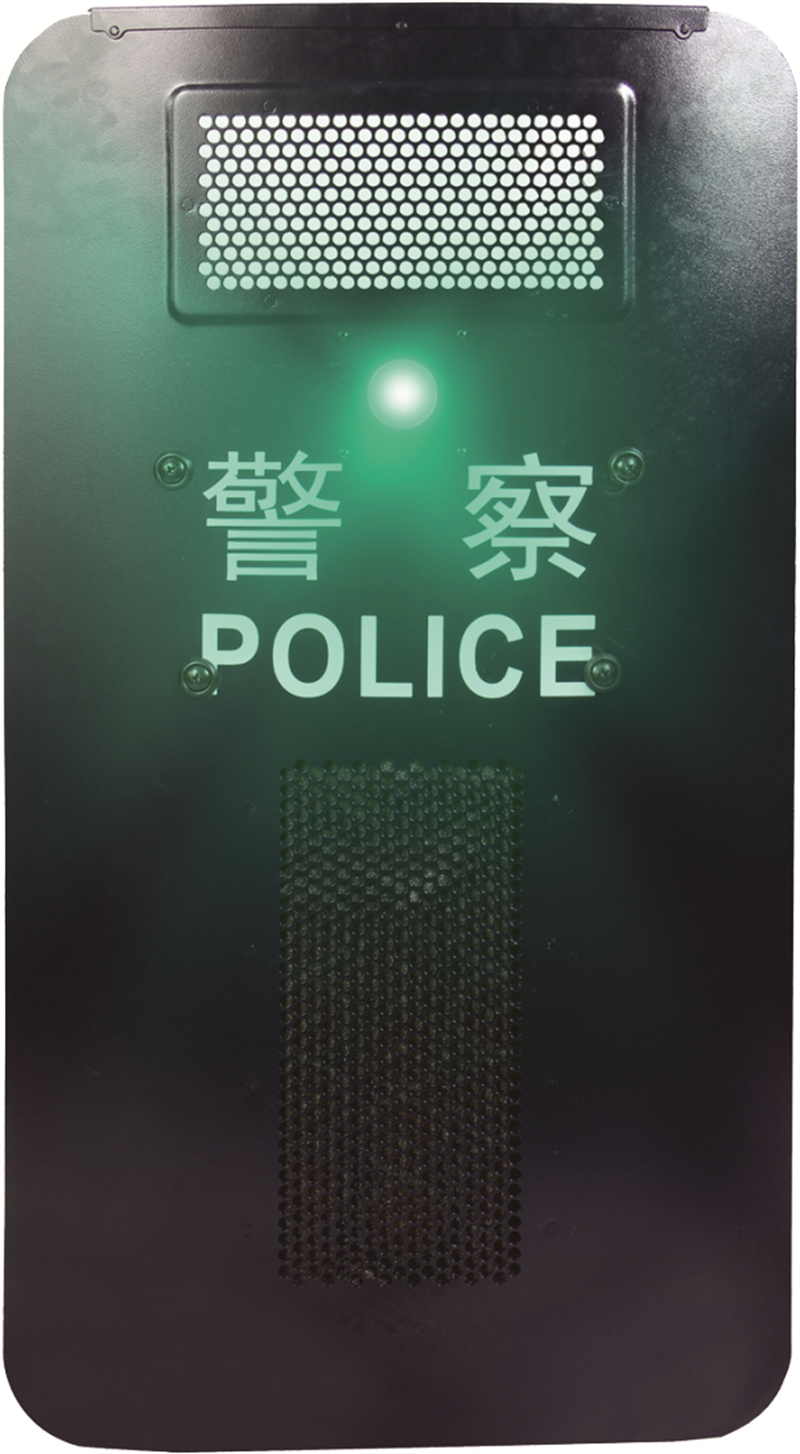

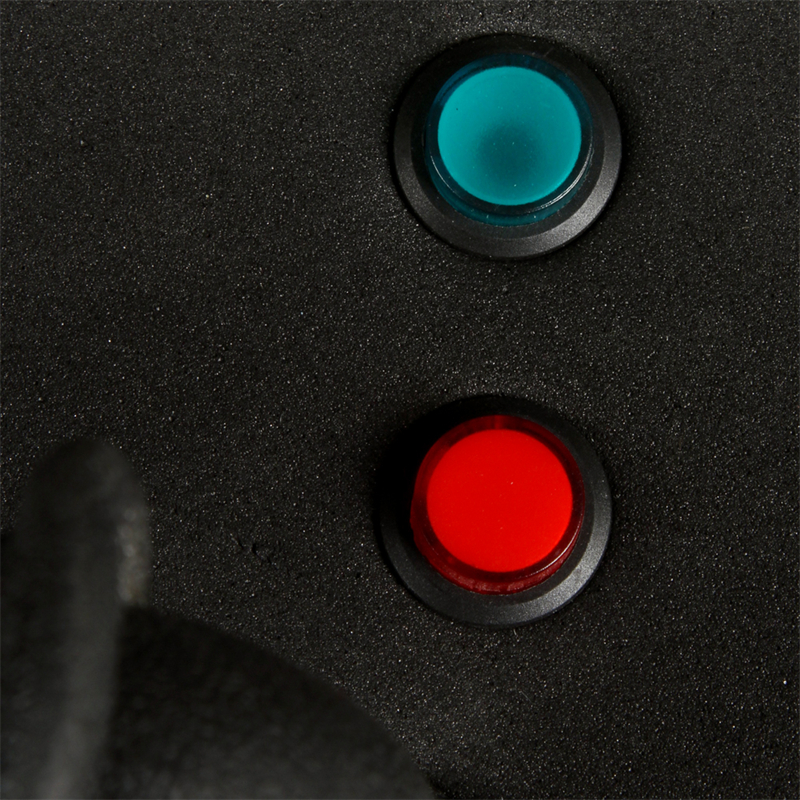

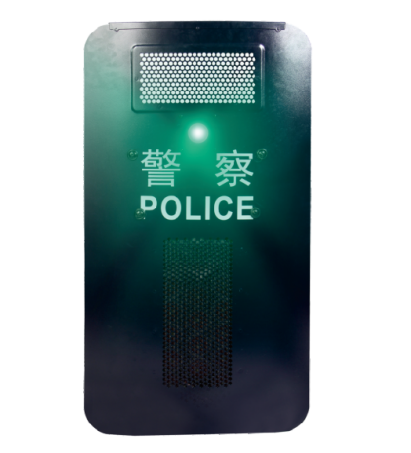

Press the green button to activate the dazzling function, producing strong green dazzling light.Press the red button to activate the acoustic function, emitting intense sound waves from the shield.

Press the spray switch on the tear gas canister to discharge tear gas.Do not use tear gas spray against the wind.

Turn off the power switch when not in use.

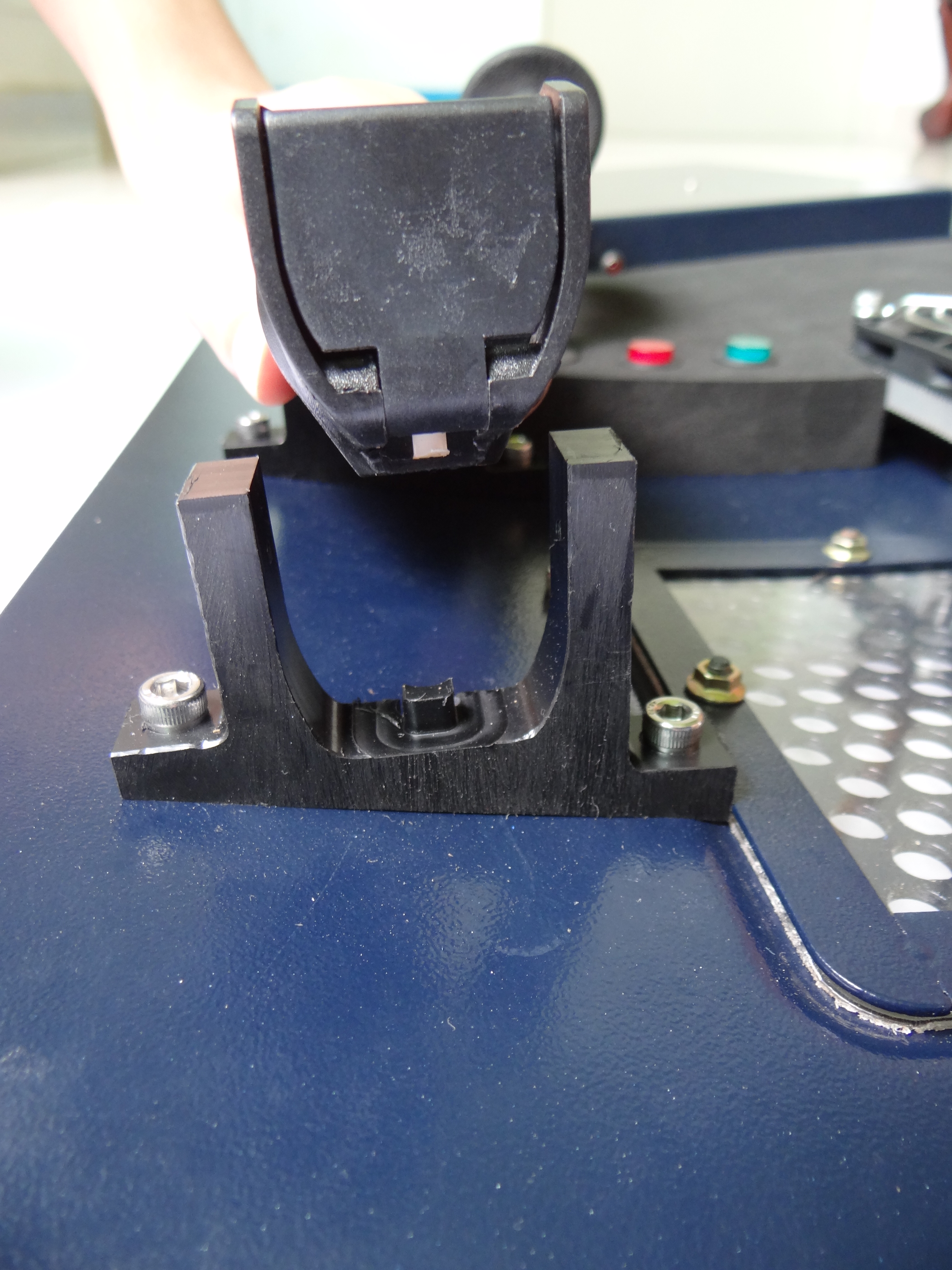

Align the bottom of the tear gas canister with the base on the shield and insert it. Position the spray nozzle toward the shield’s spray port, then gently press into place.

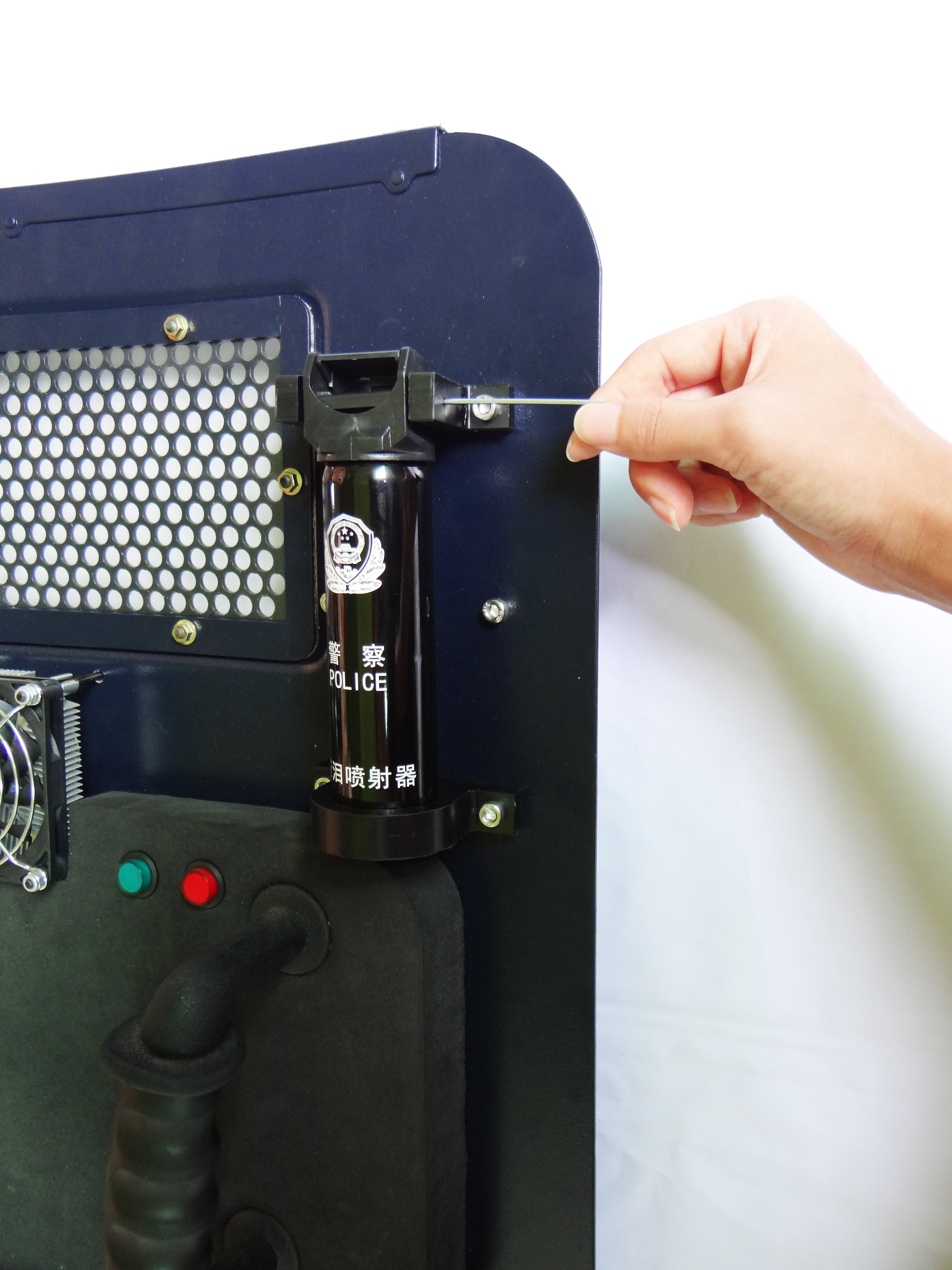

Tighten the hex socket set screws on both sides using a 1.5 mm hex key.

To remove the tear gas canister, reverse the steps:First loosen the hex socket set screws on both sides with a 1.5 mm hex key, then gently lift the end of the canister with the spray nozzle to take it out.

Align the tear gas canister nozzle with the shield spray port and insertTighten the hex socket set screws on both sides with a hex key
